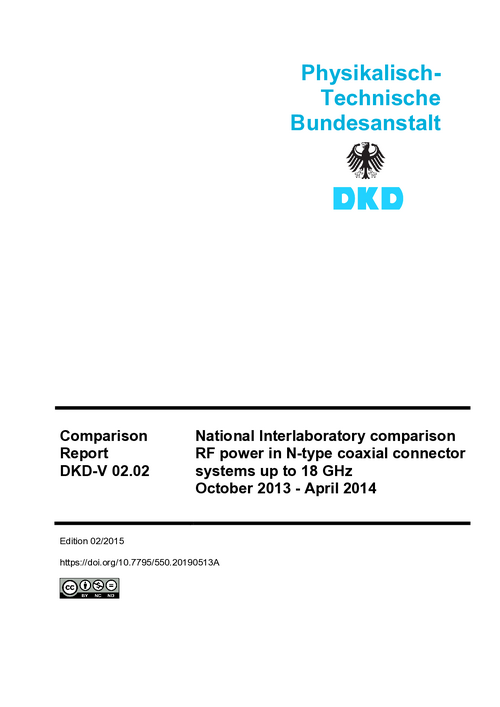

Titel: National Interlaboratory comparison RF power in N-type coaxial connector systems up to 18 GHz October 2013 - April 2014 : Comparison Report DKD-V 02.02
Autoren: Physikalisch-Technische Bundesanstalt, Braunschweig, Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887
Beitragende: HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887
Seiten:53
Sprache:en
DOI:10.7795/550.20190513A
Version:02/2015
Art der Ressource: Text / Technical Requirement
Herausgeber: Physikalisch-Technische Bundesanstalt (PTB)
Rechte: https://creativecommons.org/licenses/by-nc-nd/3.0/de/
CC by-nc-nd 3.0
Daten: Verfügbar: 2019-05-14
Erstellt: 2015-02
Datei: Datei herunterladen (application/pdf) 3.50 MB (3674227 Bytes)
MD5 Prüfsumme: 748c689a2f2e1bc46c833980012e3041
SHA256 Prüfsumme: 196fdb56605082545537089d818f45968beb1d6ff776b299479c259787f0beec
Schlagworte DKD ; comparison report ; interlaboratory comparison ; RF power ; N-type coaxial connector system ; 18 GHz
Zusammenfassung: A national interlaboratory comparison for the quantity “RF power in N-type coaxial connector systems up to 18 GHz” was carried out between October 2013 and April 2014. The aim of this national intercomparison was to give the accredited DAkkS calibration laboratories the opportunity to participate in interlaboratory comparisons, i.e. comparisons between different laboratories (according to DIN EN ISO/IEC 17025:2005 Point 5.9.1). In this comparison, the calibration factor and the reflection coefficient of a power sensor were to be determined at seven different frequencies between 50 MHz and 18 GHz. In addition, the pin depth of the N-connector was to be measured. In general, the participants’ results showed a good agreement with the reference values.
Zitierform: Comparison Report DKD-V 02.02 National interlaboratory comparison RF power in N-type coaxial connector systems up to 18 GHz, Edition 02/2015, Revision 0, Physikalisch-Technische Bundesanstalt, Braunschweig and Berlin. DOI: https://doi.org/10.7795/550
