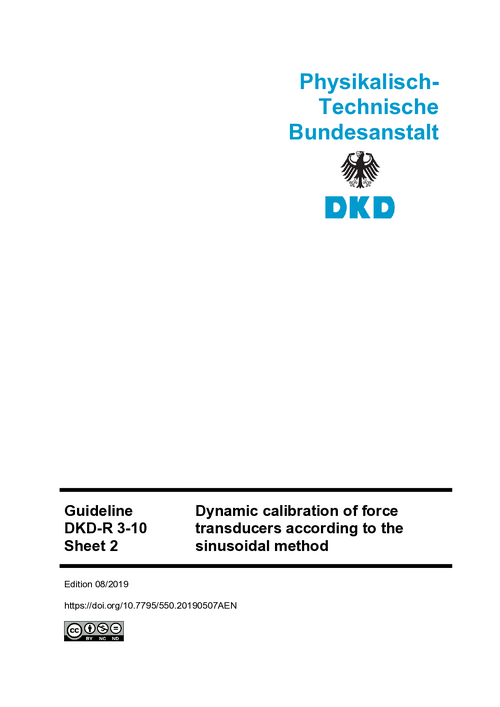

Title: | Dynamic calibration of force transducers according to the sinusoidal method : Guideline DKD-R 3-10 Sheet 2 |
Authors: | Physikalisch-Technische Bundesanstalt, Braunschweig, Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887 |
Contributors: | HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887 |
Pages: | 21 |
Language: | en |
DOI: | 10.7795/550.20190507AEN |
Version: | 08/2019 |
Resource Type: | Text / Technical Requirement |
Publisher: | Physikalisch-Technische Bundesanstalt (PTB) |
Rights: |
https://creativecommons.org/licenses/by-nc-nd/3.0/de/ CC by-nc-nd 3.0 |
Relationships: | IsVariantFormOf: DOI 10.7795/550.20190507A |
Dates: |
Available: 2019-09-06 Created: 2019-08 |
File: |
Download File
(application/pdf)
858.98 kB (879594 Bytes)
MD5 Checksum: 68d31c0df219f857dacc86cf24977e0e SHA256 Checksum: 637d2f149f8c957457fdd9d737f5216971b9e951ac618ba9b8460f4e5e78c223 |
Keywords | DKD-Richtlinie ; Kraftaufnehmer ; dynamische Kalibrierung ; Sinusverfahren ; Werkstoffprüfmaschinen |
Abstract: | A dynamic force is the product of mass and acceleration with the mass or acceleration varying over time. Through the calibration of dynamic forces, the frequency-dependent (dynamic) properties of the force measurement-related application can be determined. This guideline is intended for the dynamic calibration of force transducers which are used, for example, as transfer standards for the dynamic calibration of materials testing machines. This guideline does not restrict the validity of existing calibration requirements and the need to implement them. Even when being dynamically calibrated, force measuring devices and materials testing machines should also have a static calibration (e.g. DIN EN ISO 376 or DIN EN ISO 7500) as proof of traceability. |
Citation: | Guideline DKD-R 3-10 Sheet 2 Dynamic calibration of force transducers according to the sinusoidal method, Edition 08/2019, Revision 0, Physikalisch-Technische Bundesanstalt, Braunschweig and Berlin. DOI: 10.7795/550.20190507AEN |
