| Titel: | Anomalies in multiline-TRL-corrected measurements of short CPW lines |
| Autoren: |
Phung, Gia Ngoc, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 2.2, Hochfrequenz und Felder, ORCID: 0000-0001-7157-1263 Arz, Uwe, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 2.2, Hochfrequenz und Felder, ORCID: 0000-0003-0372-2626 |
| Beitragende: | HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887 |
| Seiten: | 4 |
| Sprache: | en |
| DOI: | 10.7795/EMPIR.14IND02.CA.20211104A |
| Art der Ressource: | Text / Article |
| Herausgeber: | Physikalisch-Technische Bundesanstalt (PTB) |
| Rechte: | Private use is allowed for non-profit purposes only. |
| Beziehungen: | IsVariantFormOf: DOI 10.1109/ARFTG49670.2021.9425345 |
| Daten: |
Verfügbar: 2021-11-08 Erstellt: 2021 |
| Datei: |
Datei herunterladen
(application/pdf)
1.86 MB (1947050 Bytes)
MD5 Prüfsumme: f3f14f4c7bbf9b683c02f1ea7325b286 SHA256 Prüfsumme: 8f36823deb813bae1f43beffd0f06a53c56cfe770527531a1aec0bfe680d1817 |
| Schlagworte | calibration ; coplanar waveguides ; on-wafer ; probes |

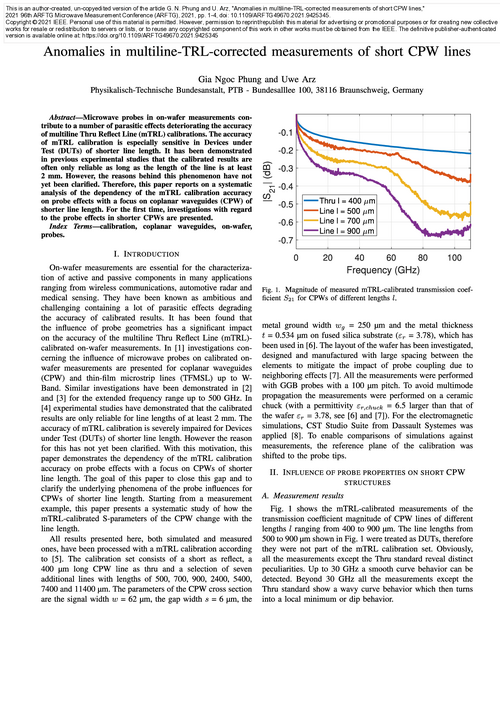

| Zusammenfassung: | Microwave probes in on-wafer measurements contribute to a number of parasitic effects deteriorating the accuracy of multiline Thru Reflect Line (mTRL) calibrations. The accuracy of mTRL calibration is especially sensitive in Devices under Test (DUTs) of shorter line length. It has been demonstrated in previous experimental studies that the calibrated results are often only reliable as long as the length of the line is at least 2 mm. However, the reasons behind this phenomenon have not yet been clarified. Therefore, this paper reports on a systematic analysis of the dependency of the mTRL calibration accuracy on probe effects with a focus on coplanar waveguides (CPW) of shorter line length. For the first time, investigations with regard to the probe effects in shorter CPWs are presented. |
| Zitierform: | Ngoc Phung, Gia ; Arz, Uwe. Anomalies in multiline-TRL-corrected measurements of short CPW lines. Physikalisch-Technische Bundesanstalt (PTB), 2021. DOI: https://doi.org/10.7795/EMPIR.14IND02.CA.20211104A |
| Förderung: | European Commission (EC, ISNI: 0000 0001 2162 673X, Grant Title: Traceability for electrical measurements at millimetre-wave and terahertz frequencies for communications and electronics technologies, Grant Number: EMPIR 18SIB09 |
