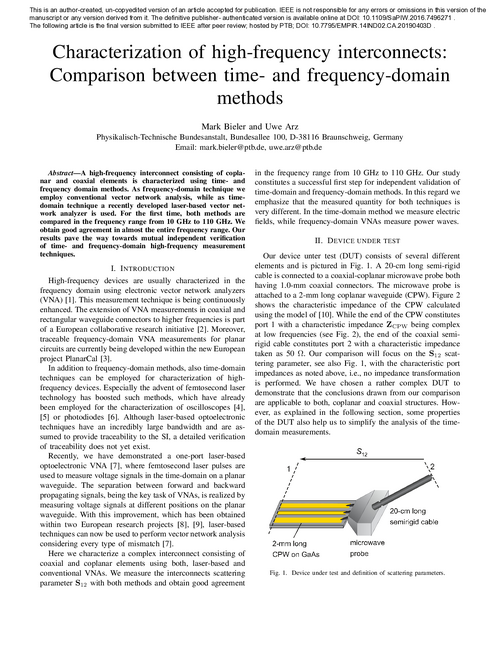

| Titel: | Characterization of high-frequency interconnects: Comparison between time- and frequency-domain methods |
| Autoren: |
Bieler, Mark, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 2.5, Halbleiterphysik und Magnetismus Arz, Uwe, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 2.2, Hochfrequenz und Felder |
| Beitragende: | HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887 |
| Sprache: | en |
| DOI: | 10.7795/EMPIR.14IND02.CA.20190403D |
| Art der Ressource: | Text / Article |
| Herausgeber: | Physikalisch-Technische Bundesanstalt (PTB) |
| Rechte: | Private use is allowed for non-profit purposes only. |
| Daten: |
Verfügbar: 2019-04-08 |
| Datei: |
Datei herunterladen
(application/pdf)
1.46 MB (1531681 Bytes)
MD5 Prüfsumme: 6b9378e3e00160e38a11955cb8fb72a9 SHA256 Prüfsumme: b75bc879c34f9b96a59ddaecf5cc52609640fe13c77416f24e2aed2679645228 |
| Zusammenfassung: | A high-frequency interconnect consisting of coplanar and coaxial elements is characterized using time- and frequency domain methods. As frequency-domain technique we employ conventional vector network analysis, while as time-domain technique a recently developed laser-based vector network analyzer is used. For the first time, both methods are compared in the frequency range from 10 GHz to 110 GHz. We obtain good agreement in almost the entire frequency range. Our results pave the way towards mutual independent verification of time- and frequency-domain high-frequency measurement techniques. |
