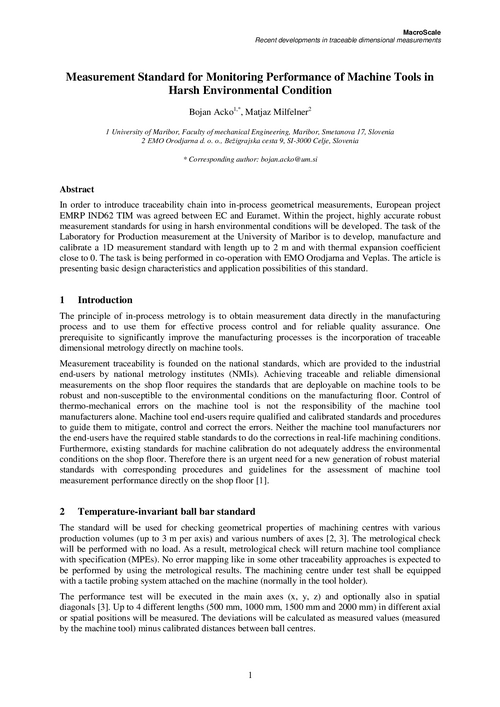

Titel: Measurement Standard for Monitoring Performance of Machine Tools in Harsh Environmental Condition
Autoren: Acko, Bojan, University of Maribor, Faculty of mechanical Engineering, Maribor, Slovenia
Milfelner, Matjaz, EMO Orodjarna d. o. o., Celje, Slovenia
Beitragende: HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887
Seiten:5
Sprache:en
DOI:10.7795/810.20150331B
Art der Ressource: Text / Article
Herausgeber: Physikalisch-Technische Bundesanstalt (PTB)
Daten: Verfügbar: 2015-04-08
Klassifikationen: PACS 06.20.fb
Datei: Datei herunterladen (application/pdf) 267.15 kB (273557 Bytes)
MD5 Prüfsumme: 7aa8f62158b4d306032eac2016d421da
SHA256 Prüfsumme: 0dd2aa40b08a84bb8ba3199b0e03194aa5d25496abcd3eeb41e97b678d394c3b
Schlagworte traceability ; machine tool ; in-process measurement ; measurement standard ; thermal expansion
Zusammenfassung: The principle of in-process metrology is to obtain measurement data directly in the manufacturing process and to use them for effective process control and for reliable quality assurance. One prerequisite to significantly improve the manufacturing processes is the incorporation of traceable dimensional metrology directly on machine tools. In order to introduce traceability chain into in-process geometrical measurements, European project EMRP IND62 TIM was agreed between EC and European metrology association Euramet. One of the tasks of the project is to develop highly accurate robust temperature invariant measurement standards that can be used in the harsh environment of the production floor for verification and mapping of the measurement errors of machine tools. Laboratory for Production measurement (LTM) at the University of Maribor - Faculty of Mechanical Engineering is taking part in the consortium of this joint research project. The main task of LTM is to develop, manufacture and calibrate at least one 1D measurement standard with length up to 2 m and with thermal expansion coefficient close to 0. The task is being performed in co-operation with EMO Orodjarna and Veplas. The design is based on composite body and ceramic probing balls. Original approach of compensating thermal expansion was introduced in order to enable use of the standard in harsh environmental conditions. Furthermore, the standard is designed as a modular artifact that can be assembled in four different lengths (500 mm, 1000 mm, 1500 mm and 2000 mm). The article is presenting basic design characteristics and application possibilities of this standard.
