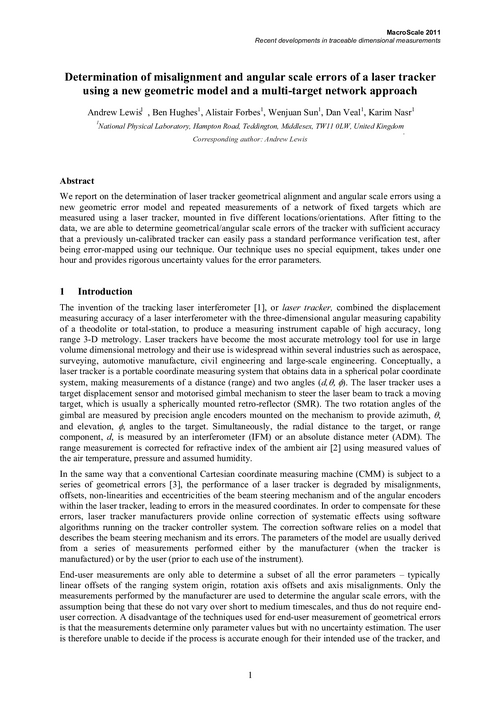

| Titel: | Determination of misalignment and angular scale errors of a laser tracker using a new geometric model and a multi-target network approach |
| Autoren: |
Lewis, Andrew, National Physical Laboratory, Teddington, UK Hughes, Ben, National Physical Laboratory, Teddington, UK Forbes, Alistair, National Physical Laboratory, Teddington, UK Sun, Wenjuan, National Physical Laboratory, Teddington, UK Veal, Dan, National Physical Laboratory, Teddington, UK Alle Autoren anzeigen (6) |
| Beitragende: | HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887 |
| Seiten: | 16 |
| Sprache: | en |
| DOI: | 10.7795/810.20130620S |
| Art der Ressource: | Text / Report |
| Herausgeber: | Physikalisch-Technische Bundesanstalt (PTB) |
| Daten: |
Verfügbar: 2013 Veröffentlicht: 2013-08 |
| Klassifikationen: | OCIS 120.0120 ; OCIS 120.3180 ; OCIS 120.3930 ; OCIS 150.6910 ; PACS 07.60.Ly ; PACS 42.62.-b ; PACS 06.20.-f ; PACS 42.62.Eh ; PACS 07.05.Hd ; PACS 07.05.Tp |
| Datei: |
Datei herunterladen
(application/pdf)
274.91 kB (281503 Bytes)
MD5 Prüfsumme: d0bdb087ec3a7d0af72193c3ad3fe620 SHA256 Prüfsumme: e9f5b1124480a27095164ec98dc203e4b65f75413c154c66b5a46ae88c000685 |
| Schlagworte | coordinate metrology ; laser tracker ; modelling ; error mapping ; multilateration |
| Zusammenfassung: | We report on the determination of laser tracker geometrical alignment and angular scale errors using a new geometric error model and repeated measurements of a network of fixed targets which are measured using a laser tracker, mounted in five different locations/orientations. After fitting to the data, we are able to determine geometrical/angular scale errors of the tracker with sufficient accuracy that a previously un-calibrated tracker can easily pass a standard performance verification test, after being error-mapped using our technique. Our technique uses no special equipment, takes under one hour and provides rigorous uncertainty values for the error parameters. |
| Anderes: | article based on oral presentation at the conference MacroScale 2011 "Recent developments in traceable dimensional measurements", Bern-Wabern (Switzerland), 04-06, October, 2011 |
| Zitierform: | LEWIS, Andrew, Ben HUGHES, Alistair FORBES, Wenjuan SUN, Dan VEAL, and Karim NASR. Determination of misalignment and angular scale errors of a laser tracker using a new geometric model and a multi-target network approach. Physikalisch-Technische Bundesanstalt (PTB), 2013. doi: 10.7795/810.20130620S |
| Bemerkung: | article based on oral presentation at the conference MacroScale 2011 "Recent developments in traceable dimensional measurements", Bern-Wabern (Switzerland), 04-06, October, 2011 |
