Title: | Scanning phase shift interferometry in length measurement |
Authors: |
Bartl, Guido, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 5.4, Interferometrie an Maßverkörperungen Schödel, Renè, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 5.4, Interferometrie an Maßverkörperungen, ISNI: 0000 0000 1237 158X |
Contributors: | HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887 |
Pages: | 6 |
Language: | en |
DOI: | 10.7795/810.20130620G |
Resource Type: | Text / Report |
Publisher: | Physikalisch-Technische Bundesanstalt (PTB) |
Dates: |
Available: 2013 Issued: 2013-08 |
Classifications: | OCIS 3175 interferometric imaging ; OCIS 5070 phase retrieval ; OCIS 5050 phase measurement ; OCIS 2650 fringe analysis ; OCIS 3180 interferometry ; OCIS 3940 metrology ; PACS 42.25.Hz interference, optical ; PACS 42.87.Bg phase-shifting ; PACS 06.30.Bp length measurement ; PACS 06.20.-f metrology |
File: |
Download File
(application/pdf)
655.57 kB (671301 Bytes)
MD5 Checksum: 7331b38d14a03d3595a2aafd9c704c08 SHA256 Checksum: 7475d95b68704c55dee2cb2c87bdc7ac63cec71f049d50cb8d556b9dbd3c7ff2 |
Keywords | interferometry ; length measurement ; phase retrieval ; phase stepping ; scanning phase shift |

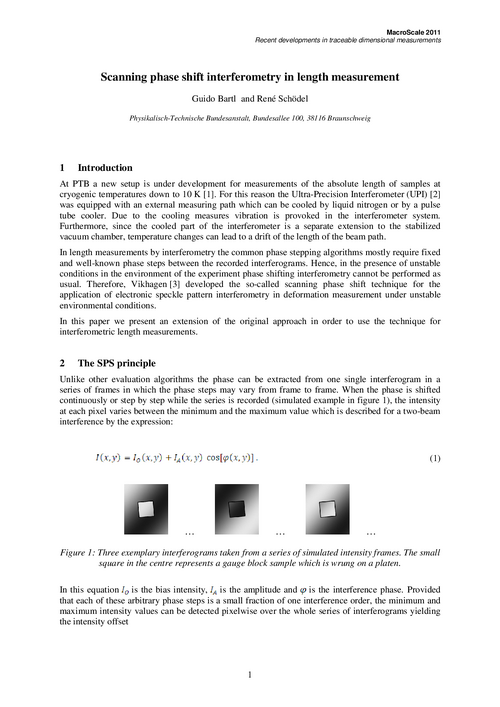

Abstract: | The Ultra-Precision Interferometer of PTB has been equipped with an external measuring path which can be cooled down to 10 K by a pulse tube cooler. Due to the cooling measures vibration is provoked in the interferometer system. Moreover, since the cooled part of the interferometer is a separate extension to the stabilized vacuum chamber, temperature changes can lead to a drift of the length of the beam path. Most phase stepping algorithms in length measurements by interferometry require fixed and well-known phase steps between the recorded interferograms. Hence, in the presence of unstable conditions in the environment of the experiment phase shifting interferometry cannot be performed as usual. Therefore, we have adapted the so-called scanning phase shift technique for the application in interferometric length measurements. |
Other: | article based on oral presentation at the conference MacroScale 2011 "Recent developments in traceable dimensional measurements", Bern-Wabern (Switzerland), 04-06, October, 2011 |
Citation: | BARTL, Guido and René SCHÖDEL. Scanning phase shift interferometry in length measurement. Physikalisch-Technische Bundesanstalt (PTB), 2013. doi: 10.7795/810.20130620g |
Remark: | article based on oral presentation at the conference MacroScale 2011 "Recent developments in traceable dimensional measurements", Bern-Wabern (Switzerland), 04-06, October, 2011 |
