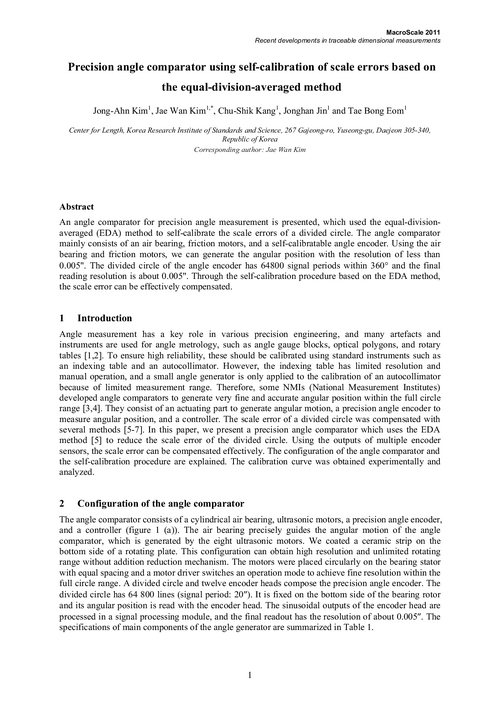

| Titel: | Precision angle comparator using self-calibration of scale errors based on the equal-division-averaged method |
| Autoren: |
Kim, Jong-Ahn, Center for Length, Korea Research Institute of Standards and Science, Daejeon, Republic of Korea Kim, Jae Wan, Center for Length, Korea Research Institute of Standards and Science, Daejeon, Republic of Korea Kang, Chu-Shik, Center for Length, Korea Research Institute of Standards and Science, Daejeon, Republic of Korea Jin, Jonghan, Center for Length, Korea Research Institute of Standards and Science, Daejeon, Republic of Korea Eom, Tae Bong, Center for Length, Korea Research Institute of Standards and Science, Daejeon, Republic of Korea |
| Beitragende: | HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887 |
| Seiten: | 4 |
| Sprache: | en |
| DOI: | 10.7795/810.20130620F |
| Art der Ressource: | Text / Report |
| Herausgeber: | Physikalisch-Technische Bundesanstalt (PTB) |
| Daten: |
Verfügbar: 2013 Veröffentlicht: 2013-08 |
| Datei: |
Datei herunterladen
(application/pdf)
465.99 kB (477175 Bytes)
MD5 Prüfsumme: 348f50921c2e3cae4cfa54206eee979e SHA256 Prüfsumme: 461e425682c42ed83c1c12bc760204c5889354b343fc4e4fde43ee5192d8ed7d |
| Zusammenfassung: | An angle comparator for precision angle measurement is presented, which used the equal-division-averaged (EDA) method to self-calibrate the scale errors of a divided circle. The angle comparator mainly consists of an air bearing, friction motors, and a self-calibratable angle encoder. Using the air bearing and friction motors, we can generate the angular position with the resolution of less than 0.005". The divided circle of the angle encoder has 64800 signal periods within 360° and the final reading resolution is about 0.005". Through the self-calibration procedure based on the EDA method, the scale error can be effectively compensated. |
| Anderes: | article based on oral presentation at the conference MacroScale 2011 "Recent developments in traceable dimensional measurements", Bern-Wabern (Switzerland), 04-06, October, 2011 |
| Zitierform: | KIM, Jong-Ahn, Jae Wan KIM, Chu-Shik KANG, Jonghan JIN and Tae Bong EOM. Precision angle comparator using self-calibration of scale errors based on the equal-division-averaged method. Physikalisch-Technische Bundesanstalt (PTB), 2013. doi: 10.7795/810.20130620F |
