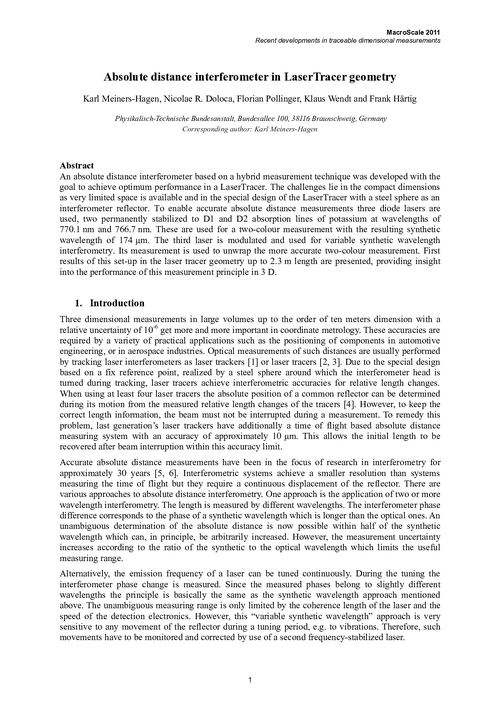

| Titel: | Absolute distance interferometer in LaserTracer geometry |
| Autoren: |
Meiners-Hagen, Karl, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 5.4, Interferometrie an Maßverkörperungen Doloca, Nicolae Radu, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 5.4, Interferometrie an Maßverkörperungen Pollinger, Florian, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 5.4, Interferometrie an Maßverkörperungen, ISNI: 0000 0000 5585 1452 Wendt, Klaus, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 5.3, Koordinatenmesstechnik Härtig, Frank, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 5.3, Koordinatenmesstechnik |
| Beitragende: | HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887 |
| Seiten: | 9 |
| Sprache: | en |
| DOI: | 10.7795/810.20130620A |
| Art der Ressource: | Text / Report |
| Herausgeber: | Physikalisch-Technische Bundesanstalt (PTB) |
| Daten: |
Verfügbar: 2013 Veröffentlicht: 2013-08 |
| Klassifikationen: | PACS 07.60.Ly ; PACS 06.30.Bp ; PACS 06.20.-f ; PACS 42.62.Eh |
| Datei: |
Datei herunterladen
(application/pdf)
1.03 MB (1080727 Bytes)
MD5 Prüfsumme: 36fa4e8c4d59415e840e004987fabe32 SHA256 Prüfsumme: e6ab320d204ed2f0cf9a75700f887f044f5f64a8a8887b27413604101d113307 |
| Schlagworte | absolute interferometry ; coordinate measuring ; laser tracer |
| Zusammenfassung: | An absolute distance interferometer based on a hybrid measurement technique was developed with the goal to achieve optimum performance in a LaserTracer. The challenges lie in the compact dimensions as very limited space is available and in the special design of the LaserTracer with a steel sphere as an interferometer reflector. To enable accurate absolute distance measurements three diode lasers are used, two permanently stabilized to D1 and D2 absorption lines of potassium at wavelengths of 770.1 nm and 766.7 nm. These are used for a two-colour measurement with the resulting synthetic wavelength of 174 μm. The third laser is modulated and used for variable synthetic wavelength interferometry. Its measurement is used to unwrap the more accurate two-colour measurement. First results of this set-up in the laser tracer geometry up to 2.3 m length are presented, providing insight into the performance of this measurement principle in 3 D. |
| Anderes: | article based on oral presentation at the conference MacroScale 2011 "Recent developments in traceable dimensional measurements", Bern-Wabern (Switzerland), 04-06, October, 2011 |
| Zitierform: | MEINERS-HAGEN, Karl, Nicolae R. DOLOCA, Florian POLLINGER, Klaus WENDT and Frank HÄRTIG. Absolute distance interferometer in LaserTracer Geometry. Physikalisch-Technische Bundesanstalt (PTB), 2013. doi: 10.7795/810.20130620A |
| Bemerkung: | article based on oral presentation at the conference MacroScale 2011 "Recent developments in traceable dimensional measurements", Bern-Wabern (Switzerland), 04-06, October, 2011 |
