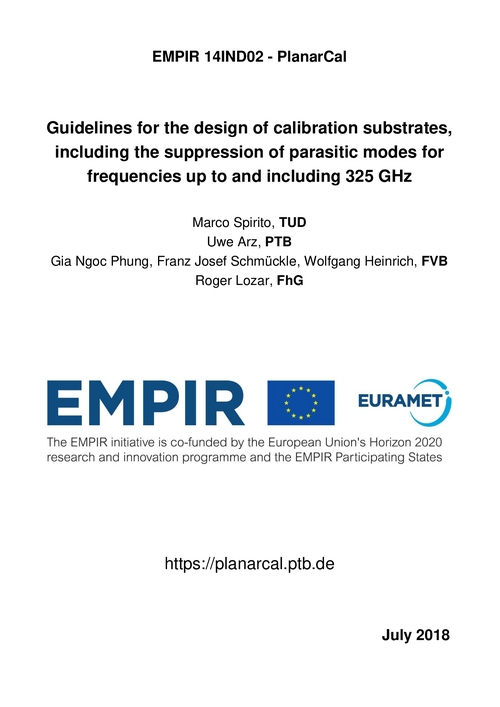

Guidelines for the design of calibration substrates, including the suppression of parasitic modes for frequencies up to and including 325 GHz : EMPIR 14IND02

Spirito, Marco; Arz, Uwe; Phung, Gia Ngoc; Schmückle, Franz Josef; Heinrich, Wolfgang; Lozar, Roger

Titel:	Guidelines for the design of calibration substrates, including the suppression of parasitic modes for frequencies up to and including 325 GHz : EMPIR 14IND02
Autoren:	Spirito, Marco, Delft University of Technology, Delft, THE NETHERLANDS Arz, Uwe, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 2.2, Hochfrequenz und Felder, ORCID: 0000-0003-0372-2626 Phung, Gia Ngoc, Ferdinand-Braun-Institut für Höchstfrequenztechnik (FBH), Berlin, ORCID: 0000-0001-7157-1263 Schmückle, Franz Josef, Ferdinand-Braun-Institut für Höchstfrequenztechnik (FBH), Berlin, ORCID: 0000-0001-5322-2713 Heinrich, Wolfgang, Ferdinand-Braun-Institut für Höchstfrequenztechnik (FBH), Berlin Alle Autoren anzeigen (6)
Beitragende:	HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887
Seiten:	31
Sprache:	en
DOI:	10.7795/530.20190424A
Art der Ressource:	Text / Guide
Herausgeber:	Physikalisch-Technische Bundesanstalt (PTB)
Rechte:	https://creativecommons.org/licenses/by/4.0/ CC BY 4.0
Daten:	Verfügbar: 2019-04-24 Erstellt: 2018-07
Datei:	Datei herunterladen (application/pdf) 2.27 MB (2385098 Bytes) MD5 Prüfsumme: 5be0802e3317ea8cfb654961d27af8c0 SHA256 Prüfsumme: 50151ca390f141936820d555373cffc6e883edc229335897ad92bbf0b6c85ff8
Schlagworte	Calibration ; coplanar waveguide (CPW) ; electromagnetic ﬁeld simulation ; parasitic modes ; substrate modes ; multiline-thru-reﬂect-line (mTRL) ; on-wafer probing ; probes
Zusammenfassung:	The scope of this guideline is to make the reader aware of the constraints arising when attempting probe level calibration at higher frequencies, especially above 110GHz. The causes of generation of un-wanted radiation modes are first briefly described, and an approach to identify their impact on the calibration quality is provided to the reader with general first order guidelines. The report then describes the approaches that have been investigated and quantified as viable methods to reduce the generation of unwanted modes. Finally, an example of a custom built Thru Reflect Line (TRL) kit with suggestions on how to create the lines and the reflect conditions are given for illustrative purposes.
Zitierform:	Spirito, Marco ; Arz, Uwe ; Phung, Gia Ngoc ; Schmückle, Franz Josef ; Heinrich, Wolfgang ; Lozar, Roger. Guidelines for the design of calibration substrates, including the suppression of parasitic modes for frequencies up to and including 325 GHz : EMPIR 14IND02 – PlanarCal, 2018. Physikalisch-Technische Bundesanstalt (PTB). DOI: https://doi.org/10.7795/530.20190424A
