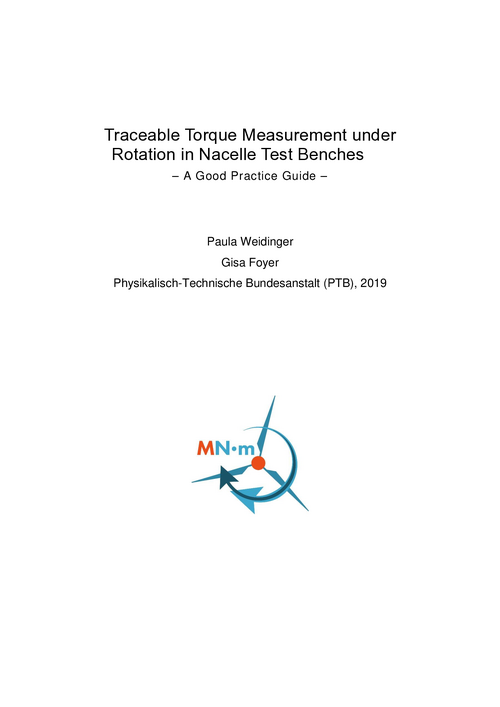

Titel: Traceable Torque Measurement under Rotation in Nacelle Test Benches : A Good Practice Guide
Autoren: Weidinger, Paula, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 1.2, Festkörpermechanik
Foyer, Gisa, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 1.1, Masse - Weitergabe der Einheit
Beitragende: HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887
Seiten:26
Sprache:en
DOI:10.7795/530.20190111
Art der Ressource: Text / Guide
Herausgeber: Physikalisch-Technische Bundesanstalt (PTB)
Rechte: https://creativecommons.org/licenses/by/4.0/
This document and all parts contained therein are protected by copyright and are subject to the Creative Commons user license CC by 4.0.
Beziehungen: HasPart: DOI 10.7795/920.20190111
Daten: Verfügbar: 2019-01-11
Erstellt: 2019-01-11
Datei: Datei herunterladen (application/pdf) 1.40 MB (1466593 Bytes)
MD5 Prüfsumme: d089c5f387da92df1c9f911819033c2c
SHA256 Prüfsumme: 8c9adbadb63376c0ff57e0cff3465b5b0b1ba58eaaa787ad1279f4102829ec2e
Schlagworte: torque measurement ; calibration ; traceability ; wind turbine test stand ; nacelle test bench ; industrial testing ; measurement uncertainty
Zusammenfassung: Torque is an important measurand for the efficiency determination of wind turbine drive trains on nacelle test benches. The recent developments in the wind industry have led to torque measurements larger than 1 MN m. To ensure reliability of wind turbines and accelerate the development process and therefore the market launch of wind turbines, a traceable torque measurement is required.
To trace torque measurement to national standards, a calibration procedure for torque measurement under rotation in nacelle test benches was developed. For the method developed, a torque transfer standard is deployed to realise traceable torque measurement in the MN m range.
This good practice guide comprises the calibration procedure developed including general requirements on the performance of a torque calibration in nacelle test benches and the calibration set-up. Moreover, any preparatory work and tests as well as the execution of the calibration measurements itself are described. To obtain a calibration result including a measurement uncertainty for the torque measurement in a nacelle test bench, guidelines for the evaluation of the calibration measurements are given.
This guide has been produced within the EURAMET project entitled “Torque measurement in the MN m range”. More information about this collaborative research project can be found on the project’s website https://www.ptb.de/emrp/ind14-home.html.
Zitierform: Weidinger, Paula and Foyer, Gisa, 2019. Traceable Torque Measurement under Rotation in Nacelle Test Benches: A Good Practice Guide. Physikalisch-Technische Bundesanstalt (PTB). DOI: https://doi.org/10.7795/530.20190111
