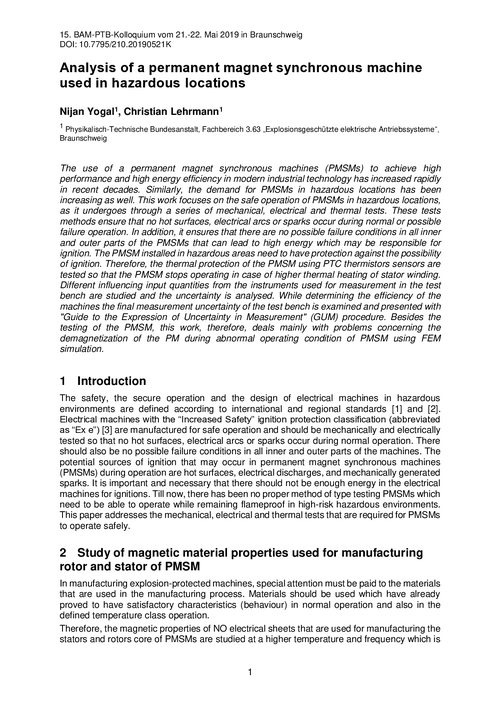

Titel: Analysis of a permanent magnet synchronous machine used in hazardous location
Autoren: Yogal, Nijan, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 3.6, Explosionsgeschützte Sensorik und Messtechnik
Lehrmann, Christian, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 3.6, Explosionsgeschützte Sensorik und Messtechnik
Beitragende: HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887
Seiten:16
Sprache:en
DOI:10.7795/210.20190521K
Art der Ressource: Text / Article
Herausgeber: Physikalisch-Technische Bundesanstalt (PTB)
Rechte: Vervielfältigung nur zum eigenen persönlichen Gebrauch.
Daten: Verfügbar: 2019-04-26
Datei: Datei herunterladen (application/pdf) 1.23 MB (1291855 Bytes)
MD5 Prüfsumme: 251bec381923809f5f244eb431c2163f
SHA256 Prüfsumme: 382e62d2e716833da6d4733cff19e75737f06f08fa61c2517aaa006417e6493b
Schlagworte explosion protection ; permanent magnet synchronous machine ; test method development ; uncertainty assessment
Zusammenfassung: The use of a permanent magnet synchronous machines (PMSMs) to achieve high performance and high energy efficiency in modern industrial technology has increased rapidly in recent decades. Similarly, the demand for PMSMs in hazardous locations has been increasing as well. This work focuses on the safe operation of PMSMs in hazardous locations, as it undergoes through a series of mechanical, electrical and thermal tests. These tests methods ensure that no hot surfaces, electrical arcs or sparks occur during normal or possible failure operation. In addition, it ensures that there are no possible failure conditions in all inner and outer parts of the PMSMs that can lead to high energy which may be responsible for ignition. The PMSM installed in hazardous areas need to have protection against the possibility of ignition. Therefore, the thermal protection of the PMSM using PTC thermistors sensors are tested so that the PMSM stops operating in case of higher thermal heating of stator winding. Different influencing input quantities from the instruments used for measurement in the test bench are studied and the uncertainty is analysed. While determining the efficiency of the machines the final measurement uncertainty of the test bench is examined and presented with "Guide to the Expression of Uncertainty in Measurement" (GUM) procedure. Besides the testing of the PMSM, this work, therefore, deals mainly with problems concerning the demagnetization of the PM during abnormal operating condition of PMSM using FEM simulation.
Informationen zur Reihe: Dies ist ein Beitrag für das 15. BAM-PTB-Kolloquium zur chemischen und physikalischen Sicherheitstechnik am 21. und 22. Mai 2019 bei der PTB in Braunschweig.
Zitierform: Yogal, Nijan ; Lehrmann, Christian. Analysis of a permanent magnet synchronous machine used in hazardous location, 2019. Physikalisch-Technische Bundesanstalt (PTB). DOI: https://doi.org/10.7795/210.20190521K
