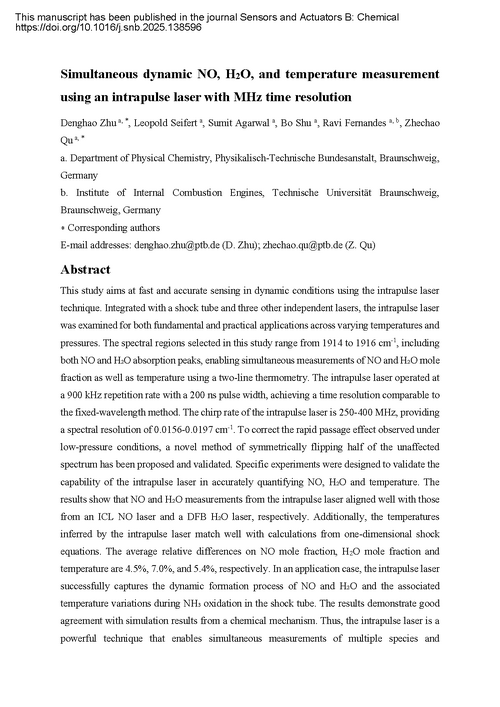

Simultaneous dynamic NO, H2O, and temperature measurement using an intrapulse laser with MHz time resolution
Autoren:
Autoren:
Zhu, Denghao, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 3.3, Physikalische Chemie
Seifert, Leopold, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 3.3, Physikalische Chemie
Agarwal, Sumit, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 3.3, Physikalische Chemie
Shu, Bo, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 3.3, Physikalische Chemie
Fernandes, Ravi, Physikalisch-Technische Bundesanstalt (PTB), Fachbereich 3.3, Physikalische Chemie

Alle Autoren anzeigen (6)
Beitragende:
Beitragende:
HostingInstitution: Physikalisch-Technische Bundesanstalt (PTB), ISNI: 0000 0001 2186 1887
Seiten:
Seiten:
27
Sprachen:
Sprachen:
en
DOI:
DOI:
10.7795/120.20260602B
Art der Ressource:
Art der Ressource:
PTB: Zeitschriftenartikel, DINI: Article, DataCite: JournalArticle
Verlag:
Verlag:
Physikalisch-Technische Bundesanstalt (PTB)
Erscheinungsjahr:
Erscheinungsjahr:
2026
Rechte:
Rechte:
Download for personal/private use only, if your national copyright law allows this kind of use.
Beziehungen:
Beziehungen:
IsVariantFormOf: DOI 10.1016/j.snb.2025.138596
Datumsangaben:
Datumsangaben:
Verfügbar: 2026-06-02
Datei:
Datei:
Datei herunterladen (application/pdf) 1.1 MB
MD5 Prüfsumme: 48eefeeb4b7c8d1c6f00b2cb5a13faea
SHA256 Prüfsumme: 29fa4a8d25c25390809bb1c59302877468441c7edbbd9c9a8fbf9ce5318910d7
Stichwörter:
Stichwörter:
intrapulse laser ; rapid passage effect ; mole fraction ; temperature ; shock tube ; laser absorption spectroscopy ; dynamic measurement
Zusammenfassung:
Zusammenfassung:
This study aims at fast and accurate sensing in dynamic conditions using the intrapulse laser technique. Integrated with a shock tube and three other independent lasers, the intrapulse laser was examined for both fundamental and practical applications across varying temperatures and pressures. The spectral regions selected in this study range from 1914 to 1916 cm-1, including both NO and H₂O absorption peaks, enabling simultaneous measurements of NO and H₂O mole fraction as well as temperature using a two-line thermometry. The intrapulse laser operated at a 900 kHz repetition rate with a 200 ns pulse width, achieving a time resolution comparable to the fixed-wavelength method. The chirp rate of the intrapulse laser is 250-400 MHz, providing a spectral resolution of 0.0156-0.0197 cm-1. To correct the rapid passage effect observed under low-pressure conditions, a novel method of symmetrically flipping half of the unaffected spectrum has been proposed and validated. Specific experiments were designed to validate the capability of the intrapulse laser in accurately quantifying NO, H₂O and temperature. The results show that NO and H₂O measurements from the intrapulse laser aligned well with those from an ICL NO laser and a DFB H₂O laser, respectively. Additionally, the temperatures inferred by the intrapulse laser match well with calculations from one-dimensional shock equations. The average relative differences on NO mole fraction, H2O mole fraction and temperature are 4.5%, 7.0%, and 5.4%, respectively. In an application case, the intrapulse laser successfully captures the dynamic formation process of NO and H₂O and the associated temperature variations during NH₃ oxidation in the shock tube. The results demonstrate good agreement with simulation results from a chemical mechanism. Thus, the intrapulse laser is a powerful technique that enables simultaneous measurements of multiple species andThis manuscript has been published in the journal Sensors and Actuators B: Chemical https://doi.org/10.1016/j.snb.2025.138596 temperature in dynamic environments, combining the calibration-free advantage of the scanned-wavelength method with the high time resolution of the fixed-wavelength method.
Förderung:
Förderung:
Förderer: European Union (EU), ROR: 019w4f821
Förderprogramm: European Partnership on Metrology (EPM)
Projekt: 23IND09 MaritimeMET, Metrology for green maritime shipping: Emission control through traceable measurements and machine learning approaches
The project (23IND09 MaritimeMET) has received funding from the European Partnership on Metrology, co-financed by the European Union’s Horizon Europe Research and Innovation Programme and by the Participating States.
